Brida ciega
  • Brida ciegaBrida ciega
  • Brida ciegaBrida ciega
  • Brida ciegaBrida ciega

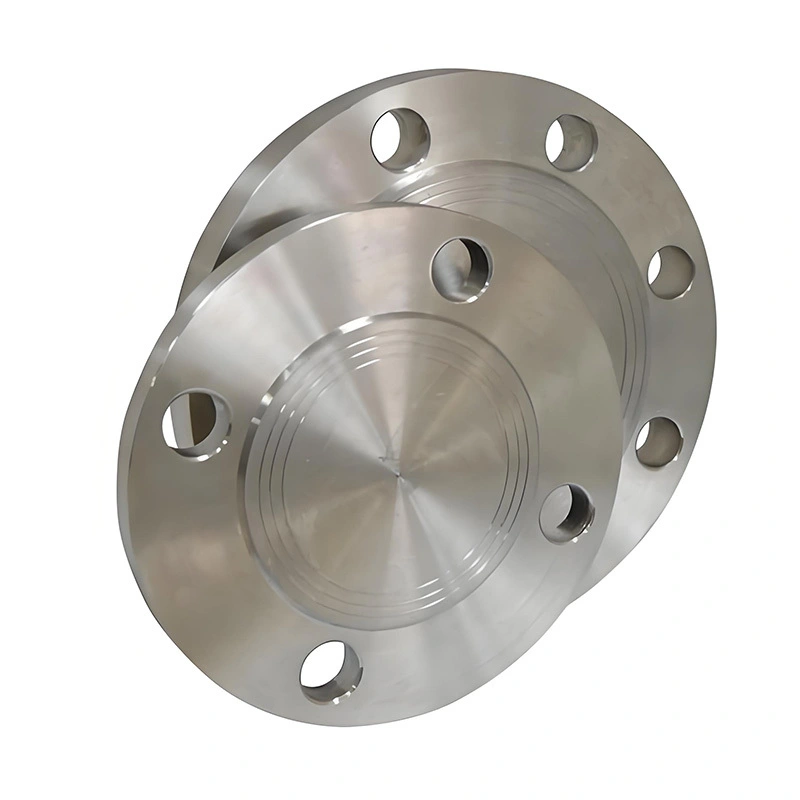

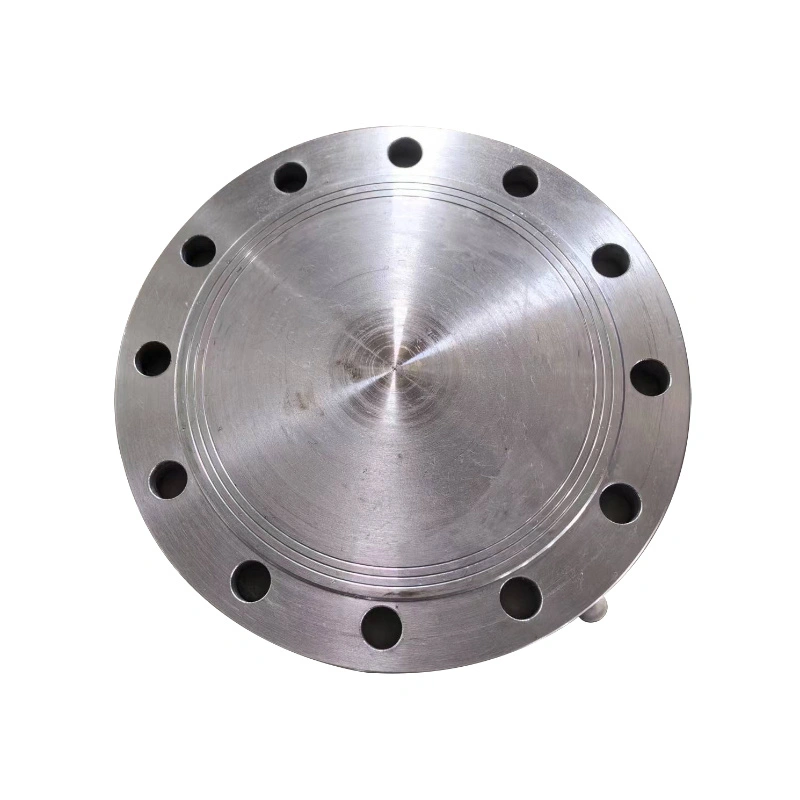

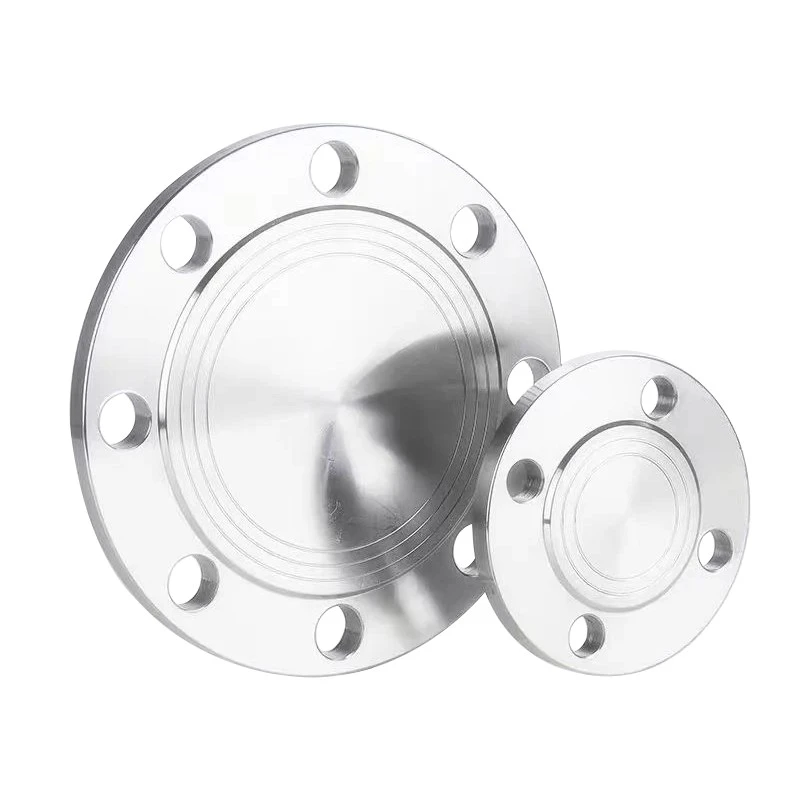

Brida ciega

Como fabricante profesional, nos gustaría brindarle brida ciega Shuangneng. Y le ofreceremos el mejor servicio posventa y entrega oportuna. Una brida ciega es un tipo de brida sin un orificio en el centro, que está diseñado para sellar el extremo de una tubería o usado para eliminar los escombros de una cartera durante el mantenimiento. La brida generalmente hecha de acero de alta calidad, como acero al carbono, acero de aleación o acero inoxidable, para satisfacer las necesidades de diferentes entornos de trabajo.

TAMAÑO:
DN10 (3/8 ") DN15 (1/2 ") DN20 (3/4 ") DN25 (1 ") DN40 (1-1/2 ")
DN50 (2 ") DN80 (3 ") DN100 (4 ") DN125 (5 ") DN150 (6 ")
DN200 (8 ") DN250 (10 ") DN300 (12 ") DN350 (14 ") DN400 (16 ")
DN450 (18 ") DN500 (20 ") DN550 (22 ") DN600 (24 ")
Tamaño personalizado Consulte

shuangneng, as a professional R&D and manufacturing factory of Blind Flange in China, specializes in mass production, strict ISO quality control and OEM/ODM service.The main function of this flange is to seal off the end of the pipeline to prevent the medium from leaking. In piping systems, blind flanges can be used to close off branches or terminals when they are no longer needed. During inspection or maintenance of a piping system, a blind flange can be used to isolate the area to be serviced, making it easier to remove debris from the piping and perform other maintenance tasks. In some cases, blind flanges are required to isolate piping systems into separate sections for independent operation and testing.


The most notable feature is the compatibility with gaskets.Gaskets play a vital role in creating a tight, leak-free seal between flange faces. However, the choice of gasket material and design depends on the type and material of the flange. Soft gaskets made of materials such as rubber or PTFE are suitable for low-pressure applications, while metal gaskets are more suitable for high-pressure situations.



Blind Flange




Advantages

EASY TO DISASSEMBLY: Compared with welded flanges, this flange is usually bolted, so it is easier to disassemble and replace.

Sealing performance: the sealing surface of our flanges is carefully processed and matched, which has good sealing performance and prevents medium leakage.

Variety of materials: according to the use of different environments and media, blind flanges can be manufactured with different materials to meet different working requirements.



Installation and Maintenance

1. Before installing this flange, it is necessary to check that the specifications and materials match the piping system and ensure that the sealing surface is flat and clean.

2. Follow the installation instructions or drawings to ensure that the blind flange is tightly and firmly connected to the pipeline. During installation, suitable bolts and nuts must be used and tightened according to the specified torque.

3. Inspect the flange regularly, including checking whether the bolts are loose and the sealing surface is worn or damaged. If any problem is found, it should be dealt with in time to ensure its normal operation and prolong its service life.

4. Regularly clean the blind flange and its connecting parts, removing oil, dust and other impurities on the surface, in order to maintain good connection status and sealing performance.




Etiquetas calientes: Brida ciega
Enviar Consulta
Datos de contacto
  • DIRECCIÓN

    No. 4516, Binhai 3rd Road 8, Xinghai Street, Distrito de Longwan, Ciudad de Wenzhou, Provincia de Zhejiang, China

  • Correo electrónico

    Julong@snflange.com

MATERIAL:
ACERO INOXIDABLE
A-182-F-304
Doble grado 304/304L
Doble grado 316/316L
316
304H
Doble grado 304/304H
Doble grado 316/316H
316H
309
310
317L
321
347
347H
904L
ESTADO DÚPLEX
F51/2205
F53/2507
ACERO CARBONO
ASTM/ASME
SA-105
A-350
LF-2
LF-3
A694
SA-516-70
A36
TITANIO
gr2
gr12
ALEACIONES DE CROMO
A-182-F-1
F-5
F-6
F-9
F-91
F-11
F-12
F-22
ALUMINIO
3003
6061
5083
otros grados bajo pedido
HASTALLOY
B-2
C-276
G
X
C-22
INCONEL
600
601
625
718
monel
400
COBRE
90/10 (C70600)
70/30 (C71500)
